12th Gen Intel Firewall Mini PC Alder Lake i3 N305 8 Core N200 N100 Fanless Soft Router Proxmox DDR5 4800MHz 4xi226-V 2.5G

$317.00 $316.40 SAVE 0%

Model: Intel i3-N305

N100
Intel i3-N305

Type: No RAM No SSD+4*M.2 NVMe

No RAM No SSD
No RAM No SSD+4*M.2 NVMe
8G RAM 128G SSD
16G RAM 128G SSD
16G RAM 256G SSD
32G RAM 128G SSD
32G RAM 256G SSD

Plugs type: UK

US
EU
UK
AU
Add to Wishlist
Specification
Bios and Driver

Frequently Bought Together

Total price:$345.00 $344.40
  • This item: 12th Gen Intel Firewall Mini PC Alder Lake i3 N305 8 Core... $232.06 $208.85
  • 4*M.2 NVME interface supports expansion of 2/3 M.2 NVMe x1 adapter boards.... - M.2 NVMe x4 $28.00
Description

Product Information
Features:

1. Upgrade two USB3.0 devices, with two USB3.0+ six USB2.0 devices on panel 10
2. Add SATA3.0 seat cell and WiFi seat cell signal to choose one of the two, and the signal will automatically pull.
3. Add a DIP key embedded in the call self-starter to enable the call self-starter to operate on the panel
4. Brand new lntel 12th generation N series full small core low power consumption processor
5. 1*SO-DIMM DDR5 memory 4800MHz compatible with 5200/5600MHZ
6. 4*Intel i226-V network card chip full UDE2.5G with filter connector
7. HDM12.1+DP1.4 dual display interface, support 4096 x 2160@60Hz
8. M.2NVMe x4 high-speed interface, can split multiple M.2 hard drives through the adapter board
9. M.2 WiFi slot supports Bluetooth/WiFi6 wireless receiving block
10. M.2 WiFi interface supports adapter board expansion M.2NVMe or mSATA solid state disk
11. The M.2 x4 interface supports the expansion of 2\3\4 M.2 NVMe x1 adapter boards
12. TF card holder supports data storage or system boot
13. 2*small 4PIN fan, fan power supply base supports temperature control fan

Product parameters:
Processor: Intel N95 / Intel N100 / Intel N200 / Intel ?3-N305
Memory: 1* SO-DIM DDR5 480OMHZ (compatible with 5200//5600MH2) as large as 32GB
Storage: 1*M.2 NVMex4 (multiple M.2 or mSATA/SATA can be supported through the adapter board)
Graphics: Intel UHD Graphics
Display: HDMI2.1 supports 4096x2180@60Hz
DP1.4 supports 4096×2160@60Hz
Network card: 4*intel i226.V 2.5G network card
Wifi: 1*M.2 KEY E (support Bluetooth/WiFi6 module
USB: with two USB3.0+ six USB2.0 devices on panel I0
Heat dissipation: no fan, two copper tubes heat conduction aluminum shell passive heat dissipation
BIOS: AMI EFI BIOS supports self-starting when calling, GPIO, PXE network calling super
Power Consumption: 15W
Power supply: DC-12V5 (5*25 connector)
Chassis: aluminum alloy material
Extended pin header: 2*4Pin fan header with temperature control, 1*serial pin header, 1*USB pin header, 1*SW (shutdown USB pin header)
Expandable: M.2WiF supports expansion to NVMe/SATA/mSATA hard disk signals
M.2 X4 socket can expand 2/3/4 M.2x1
Size: 145.6mm (L) 145.4mm (W) X 53.6mm (H)
Color: Grey/Black
Installation method: desktop, wall-mounted (contact customer service for additional purchase)
Working environment: -0°C~t70'C relative temperature 5%-85%


Reviews

Customer Reviews

Based on 15 reviews
80%
(12)
0%
(0)
0%
(0)
0%
(0)
20%
(3)
100.0
100.0
F
Frederic

12th Gen Intel Firewall Mini PC Alder Lake i3 N305 8 Core N200 N100 Fanless Soft Router Proxmox DDR5 4800MHz 4xi226-V 2.5G

A
Aleksander Błażelonis
Great product with unbeatable price!

I bought Intel N305 mini PC firewall appliance. I'm very impressed. The package got delivered in 7 days to Poland, the packaging was very good and mini PC works flawlessly.
For this price (280$) I wasn't expected the experience to be that good. I installed 32GB of Crucial SODIMM DDR5 in one stick and installed Proxmox. For now it serves as a homelab with virtualized OPNSense firewall.
Only issue is it can get quite hot so it's best to run it actively cooled (there's a fan header on the board).
You can also adjust power limits of the CPU. Default settings were 35W in turbo and 20W otherwise.

M
Martijn van der Zande
Solid machine for router, firewall and more

Ordered through the website directly, free shipping, no import fees and package arrived nicely packaged in about 2 weeks (Which could have been faster, but the local postage service 'lost' the package for several days, only to unanounced deliver it after the weekend).

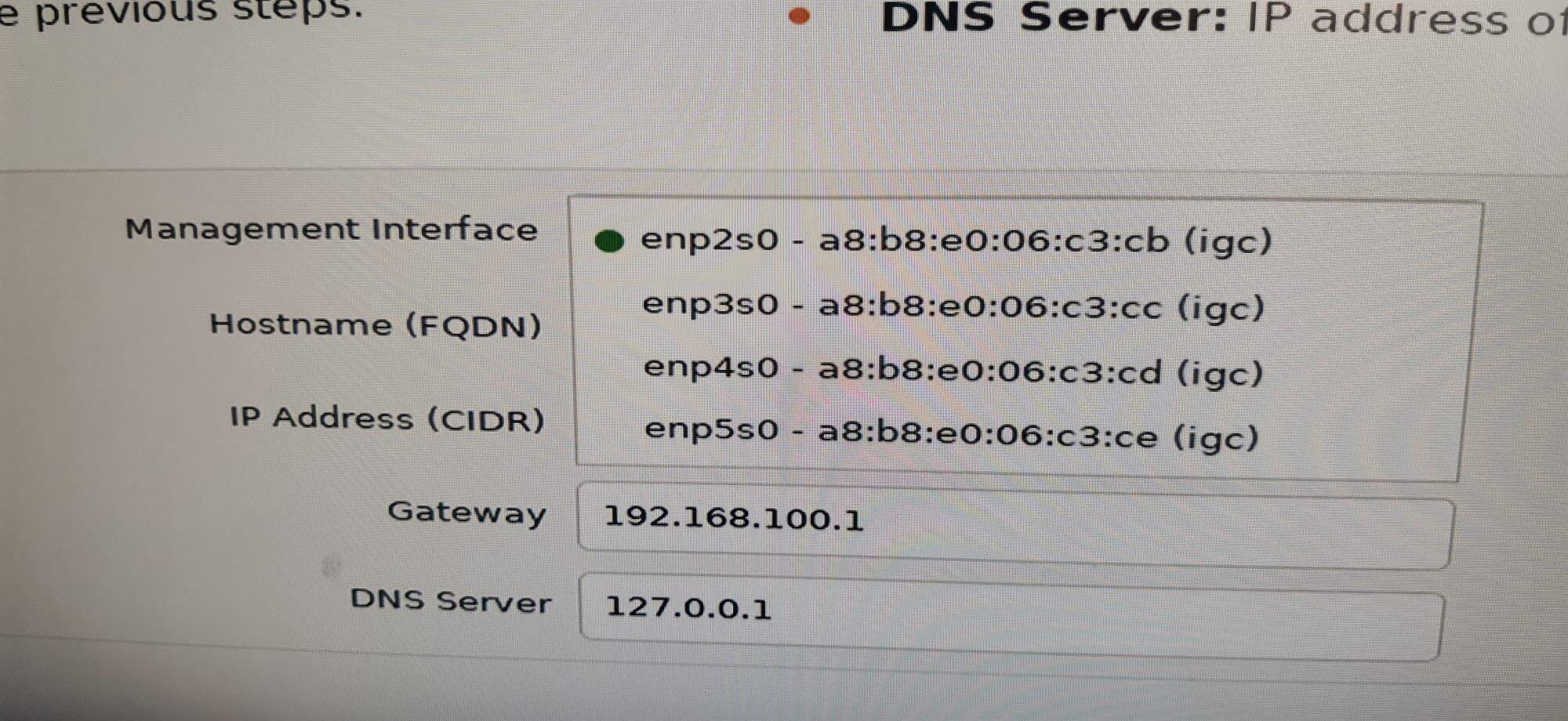

I'm using the machine with PFSense, version 2.7.2 as of june '24. All hardware was recognized and worked without issue immediately at boot. Awaiting internet upgrade from 1 Gbit to 2 Gbit to test the the machine more, but can say wireguard maxes out my current connection no issue with 20% cpu load max.
Physical wise, the box is much bigger than I initially expected, maybe 3x the size of my previous router (Similar type of machine, but Gbit and based on a J3160). More than enough IO, usb and display wise for my use, but a console port could have been a good addition that my previous machine did have.

Overall, happy with my purchase and the order process as a whole.

I
Iuliia Kyrychenko
Good router

Very satisfied so far.

r
ryan jennings
Slow shipping

Got this survey for feedback and don't even have it yet.
